LVTOPSUN LVTS-6KW-HYD | 6kW Hybrid Solar Inverter for Energy Storage
description2
LVTS-6KW-HYD
LVTS-6KW-HYD
6kW Hybrid Solar Inverter
Intelligent Solar Energy Management Solution for Residential Energy Storage
LVTS-6KW-HYD integrates photovoltaic input, battery charging and discharging management,
grid connection, and EPS backup output into one hybrid inverter solution.
6kW Hybrid Solar Inverter
Intelligent Solar Energy Management Solution for Residential Energy Storage
LVTS-6KW-HYD integrates photovoltaic input, battery charging and discharging management,
grid connection, and EPS backup output into one hybrid inverter solution.
Product Overview

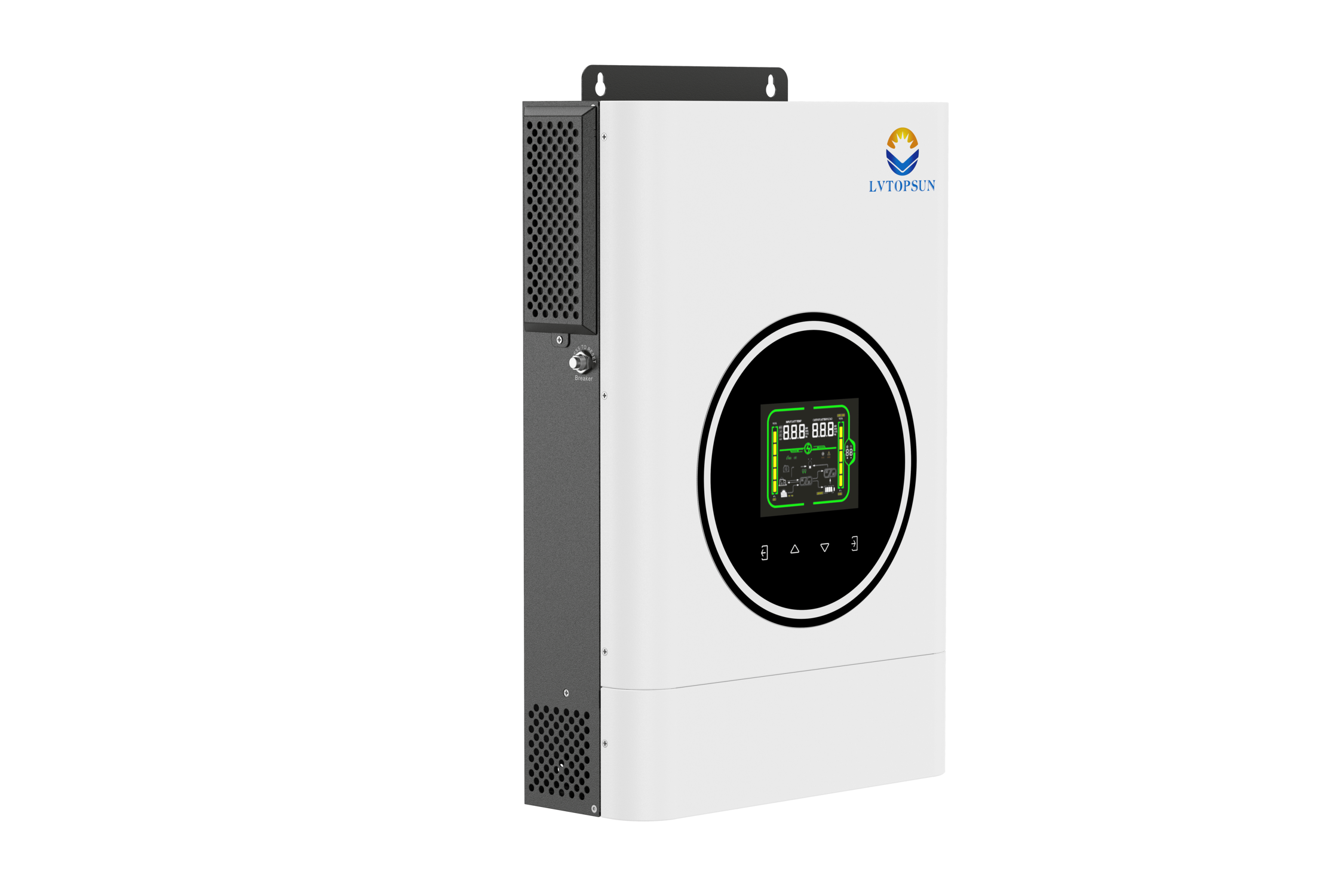

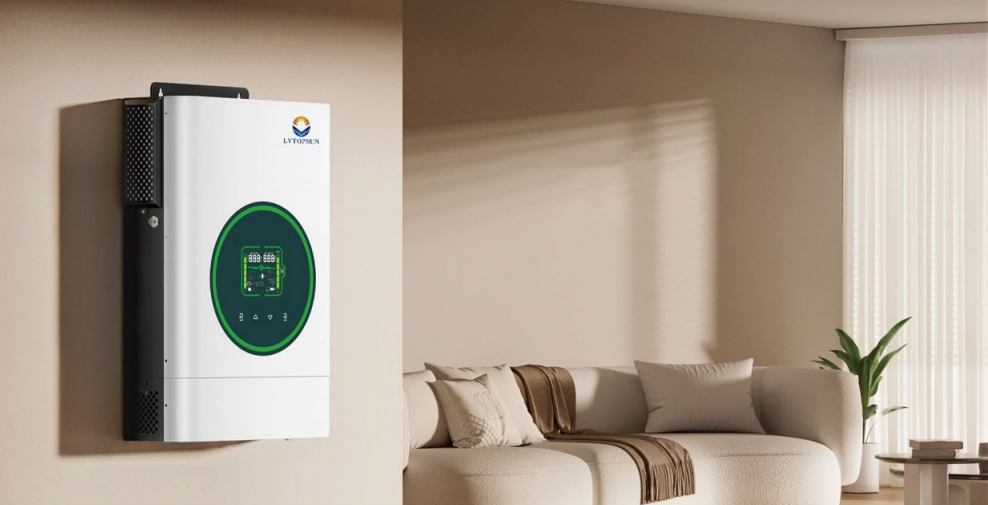

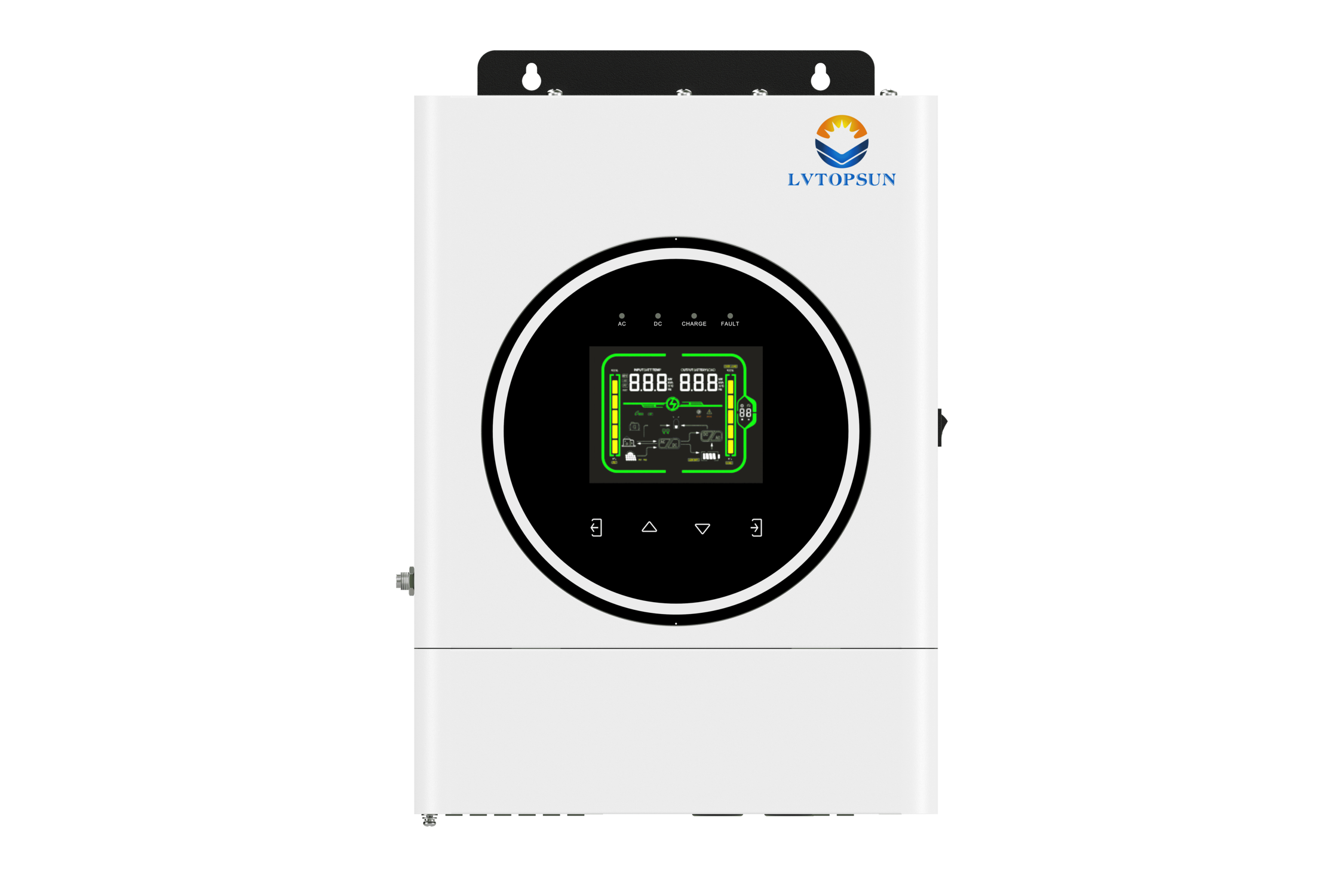

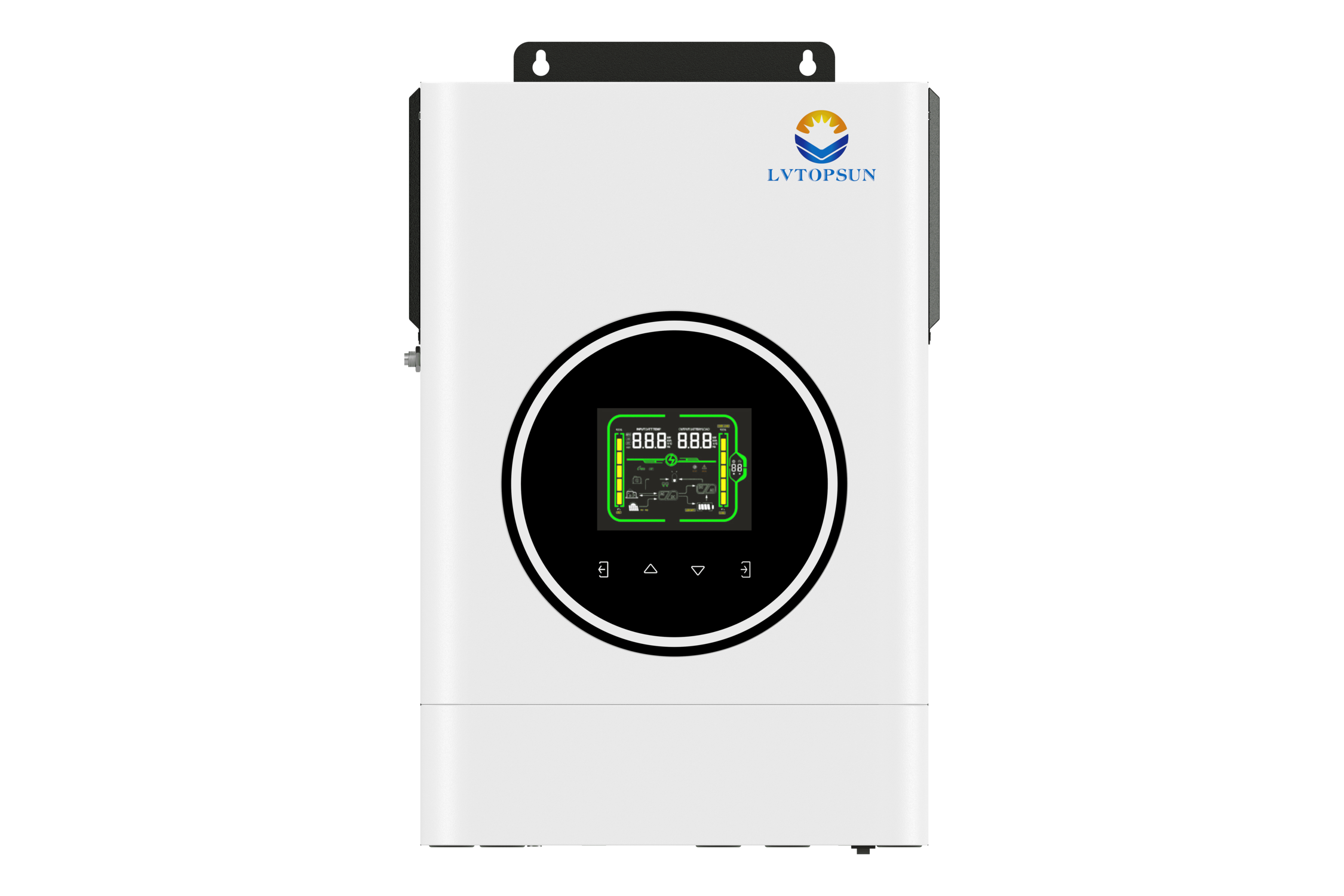

The LVTOPSUN LVTS-6KW-HYD is a hybrid solar inverter designed for residential energy storage systems.
The inverter supports photovoltaic input, battery charging and discharging control, grid-connected operation, and EPS backup output.
With compatibility for Lithium-ion and Lead-acid batteries, multiple communication interfaces, APP monitoring, and parallel operation capability, LVTS-4KW-HYD provides a flexible solution for users seeking efficient solar energy utilization and reliable backup power.
Why Choose LVTS-6KW-HYD
High PV Input Capability
LVTS-6KW-HYD supports:
- Maximum PV Input Power: 7800W
- Maximum Input Voltage: 550V
- MPPT Voltage Range: 90V~500V
- Maximum Input Current per MPPT: 27A
The inverter supports efficient photovoltaic energy conversion through MPPT technology.
Flexible Battery Compatibility
LVTS-6KW-HYD supports:
- Lithium-ionBattery
- Lead-acid Battery
Battery parameters:
- Nominal Battery Voltage: 48V
- Battery Voltage Range: 42~60V
- Maximum Discharge Current: 120A
- Maximum Charge/Discharge Power: 6000W
Battery communication:
- CAN
- RS485
Reliable Backup Power
LVTS-6KW-HYD supports EPS output function.
Key parameters:
- Nominal Output Power: 6000W
- Peak Apparent AC Power: 12000VA
- Transfer Time: 4ms
- Voltage Waveform: Pure Sine Wave
Providing stable power output for backup energy applications.
Intelligent Monitoring
Supported communication:
- RS485
- USB
- CAN
- Wi-Fi
Display:
- LCD
- APP
Helping users monitor and manage system operation.
System Expansion
LVTS-6KW-HYD supports:
Parallel Capability: 9 units
The system can be expanded according to different application requirements.
Global Service & Local Support
LVTOPSUN provides professional energy storage solutions supported by global technical resources and service capabilities.
For distributors, installers, and project partners, LVTS-6KW-HYD provides reliable product integration support through technical documentation and professional energy solutions.
Product Advantages
|
Feature |
Customer Value |
|
6kW Hybrid Inverter |
Suitable for solar energy storage applications |
|
7800W Maximum PV Input |
Supports higher solar generation capacity |
|
48V Battery Compatibility |
Flexible battery integration |
|
6000W Charge/Discharge Power |
Strong energy management capability |
|
EPS Backup Output |
Supports backup power applications |
|
4ms Transfer Time |
Fast power switching |
|
9 Units Parallel Capability |
Flexible system expansion |
|
CAN / RS485 / Wi-Fi Communication |
Convenient system integration |
|
LCD & APP Monitoring |
Intelligent operation management |
Technical Specifications
Model Information
|
Parameter |
Specification |
|
Model |
LVTS-6KW-HYD |
|
Product Type |
Hybrid Solar Inverter |
Solar Input Data
|
Parameter |
Specification |
|
Max. PV Input Power |
7800W |
|
Max. Input Voltage |
550V |
|
Start-up Voltage |
120V |
|
MPPT Voltage Range |
90V~500V |
|
Max. Input Current per MPPT |
27A |
|
Max. Short Circuit Current per MPPT |
32A |
|
Number of MPPT |
1 |
AC Input Data (Grid & Generator)
|
Parameter |
Specification |
|
Nominal Input Voltage |
230Vac, L/N/PE |
|
Input Voltage Range |
90~280Vac (APL); 170~265Vac (UPS) |
|
Max. AC Input Power |
8050W |
|
AC Frequency Range |
40~65Hz |
|
Frequency |
50/60Hz Auto Sensing |
Battery Data
|
Parameter |
Specification |
|
Battery Type |
Lithium-ion/ Lead-acid |
|
Nominal Battery Voltage |
48V |
|
Battery Voltage Range |
42~60V |
|
Max. Discharge Current |
120A |
|
Max. Charge/Discharge Power |
6000W |
|
Max. Solar Charge Current |
120A |
|
Max. AC Charge Current |
100A |
|
Max. Charge Current (PV+AC) |
120A |
|
Lithium-ion Battery Activation |
Yes |
|
Lithium-ion Battery Communication |
CAN / RS485 |
Inverter Output Data
|
Parameter |
Specification |
|
Nominal Output Power |
6000W |
|
Peak Apparent AC Power |
12000VA |
|
Nominal AC Voltage |
230V |
|
Nominal Grid Frequency |
50/60Hz |
|
Voltage Waveform |
Pure Sine Wave |
|
Transfer Time |
4ms |
|
THDv (@linear load) |
<3% |
|
Max. Output Current |
27A |
Efficiency
|
Parameter |
Specification |
|
Peak Efficiency |
94% |
|
MPPT Efficiency |
≥99.9% |
Protection
|
Protection Function |
Specification |
|
AC Short Circuit Protection |
Yes |
|
AC Surge Protection |
Yes |
|
DC Surge Protection |
Yes |
|
Overload Protection |
Yes |
System Parameters
|
Parameter |
Specification |
|
Dimension (W×H×D) |
333×505×120mm |
|
Weight |
10.6kg |
|
Cooling Method |
Fan Cooling |
|
Operating Temperature Range |
-10℃~60℃ |
|
Ingress Protection |
IP21 |
|
Noise Emission |
≤50dB |
|
Altitude |
4000m |
|
Relative Humidity |
5%~95% (Non-condensing) |
Communication & Monitoring
|
Parameter |
Specification |
|
Communication Interface |
RS485 / USB / CAN / Wi-Fi |
|
Display |
LCD&LED&APP |
|
Parallel Capability |
9 |
|
Number of AC Output |
2 |
Product FAQ
-
What is LVTS-4KW-HYD?
-
What batteries are compatible with LVTS-4KW-HYD?
-
How much PV input power does LVTS-4KW-HYD support?
-
Can LVTS-4KW-HYD provide backup power?
-
Can multiple units work together?
Yes. The inverter supports: 9 units parallel capability
