Low Voltage ESS

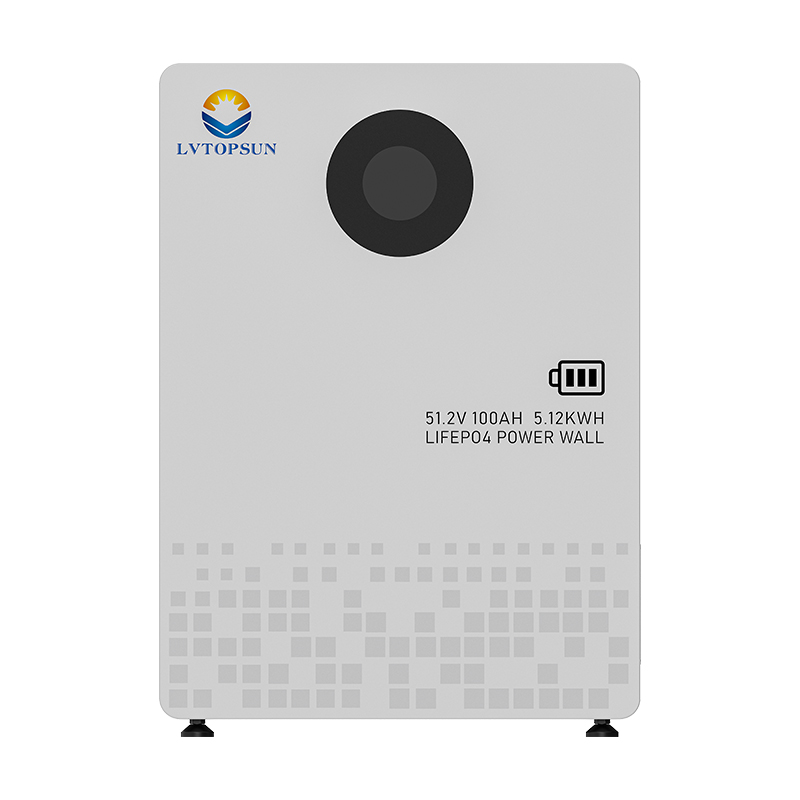

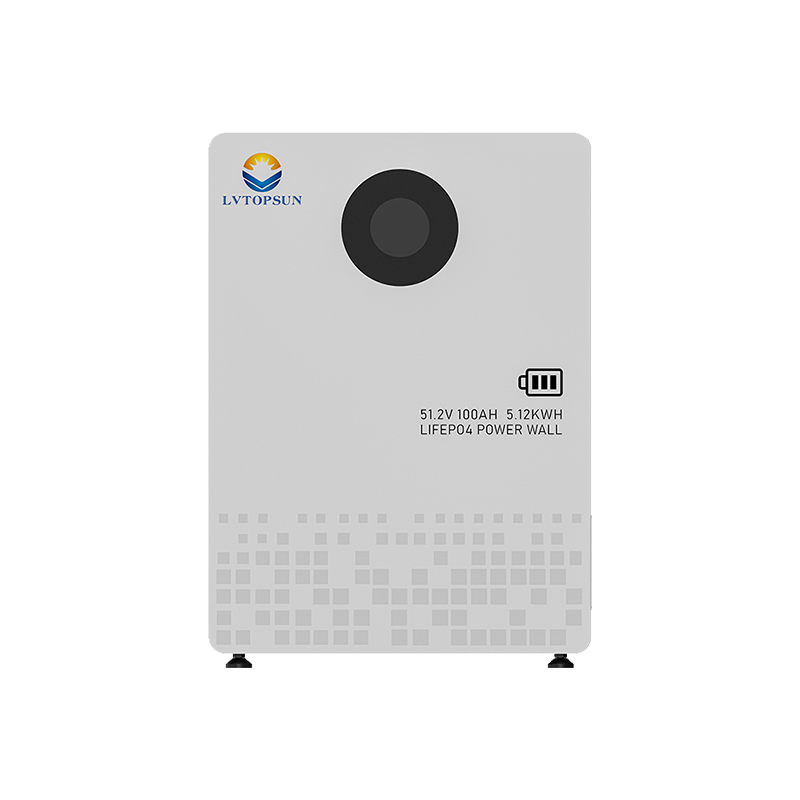

LVTS-512100-G3 Residential Photovoltaic Energy Storage Lithium-Ion Battery
Product Video
description2
Product Features
More Usable Energy
90% depth of discharge.
High Efficiency
Full-time 1C discharge.
Flexible Installation
Wall mounted or floor stand.
High Expansibility
Scalable from 5.12kWh to 76.8kWh.
Safe&Reliable
Lithium iron phosphate cell.Cobalt free.
Perfect Compatibility
Compatible with mainstream inverter brand.
Technical Specifications
Nominal Voltage |
51.2 Vdc |
Nominal Capacity |
100 Ah |
Battery Energy |
5120 Wh |
Charge Current |
50 A |
Charge Power |
2560W |
Discharge Current |
100 A |
Discharge Power |
5120W |
Short Circuit Current |
350 A |
Display |
Color Touchscreen |
Communication |
CAN,RS485,RS232 |
Dimension(W×D×Hmm) |
440×138×600mm |
Weight(Kg) |
47.3kg |
Installation |
Floor Stand or Wall Mount |
Working Temperature |
-20℃~60℃ |

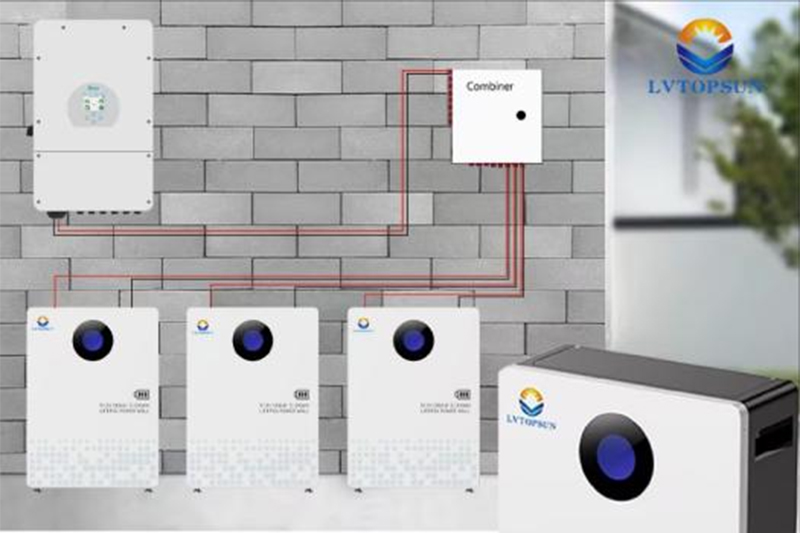

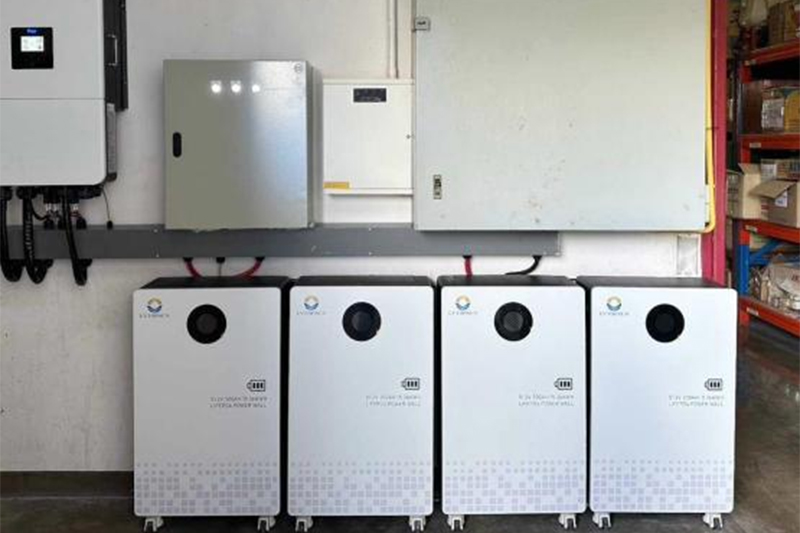

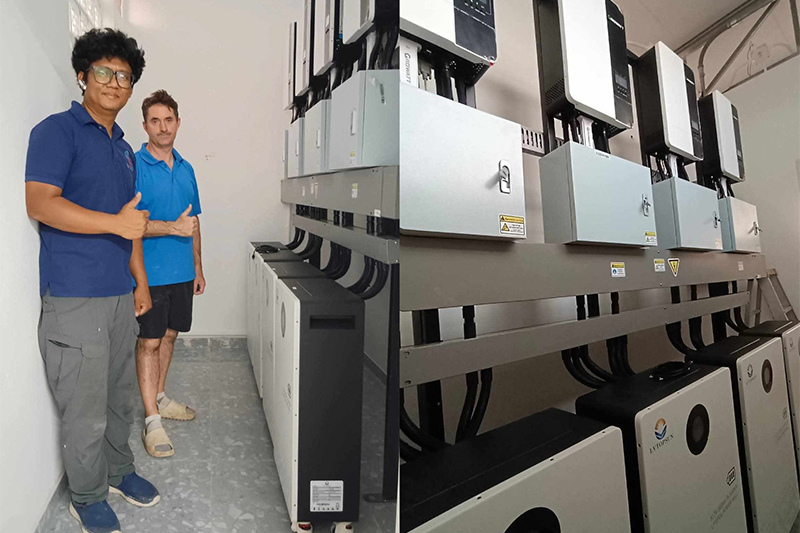

Product Application Introduction

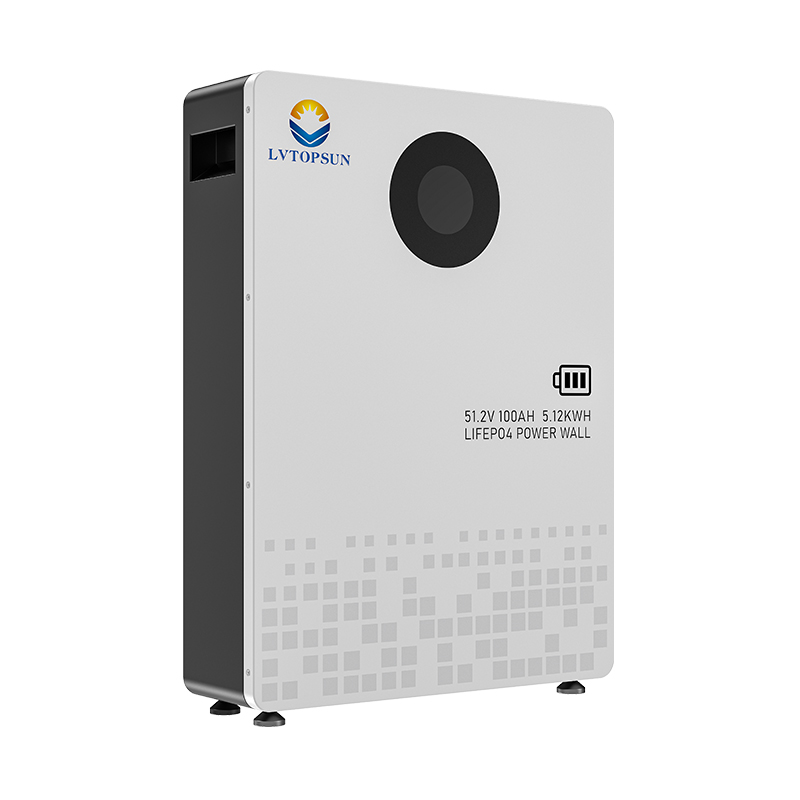

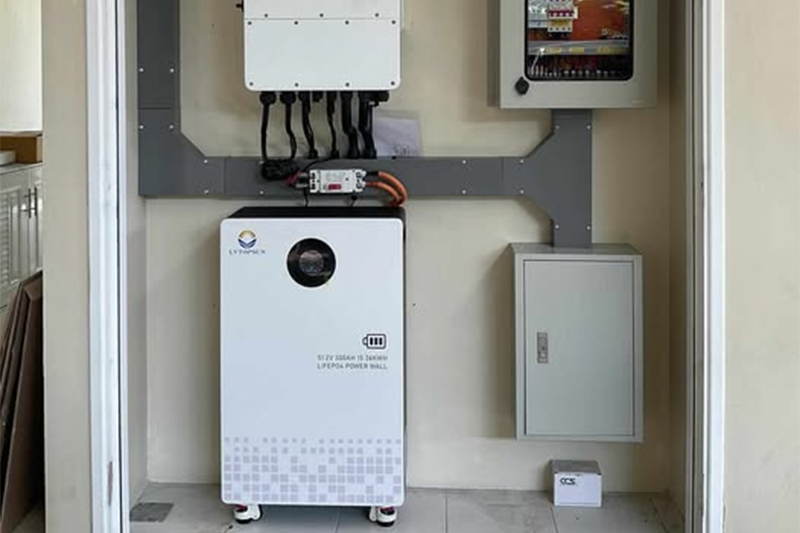

One of the standout features of the LVTS-512100-G3 is its versatile installation options. It can be effortlessly mounted on the wall or placed on the floor, offering unparalleled flexibility to accommodate various home layouts and spatial requirements. This adaptability ensures seamless integration into diverse residential environments, whether in compact urban apartments or spacious rural homes.

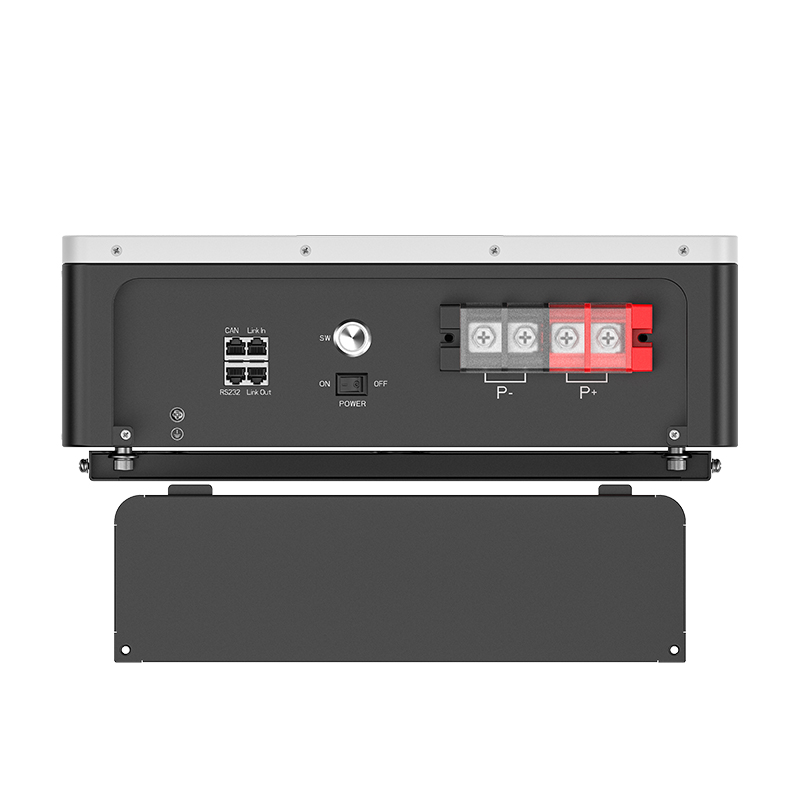

The LVTS-512100-G3 is equipped with advanced communication interfaces, including CAN, RS485, and RS232, enabling seamless integration with a wide range of energy management systems and inverters. This ensures efficient real-time monitoring and control of the battery's performance, allowing users to optimize energy usage, enhance system efficiency, and achieve greater energy independence.
Additionally, the battery features a user-friendly touchscreen display, providing real-time insights into critical parameters such as battery status, charge level, energy consumption, and system health. The intuitive interface empowers homeowners to effortlessly monitor and manage their energy storage system, ensuring optimal performance and peace of mind.
Built with safety and durability in mind, the LVTS-512100-G3 incorporates advanced lithium-ion technology, ensuring long cycle life, high energy density, and exceptional thermal stability. Its robust design is complemented by multiple protection mechanisms, including overcharge, over-discharge, and short-circuit protection, guaranteeing safe and reliable operation under various conditions.
In summary, the LVTS-512100-G3 is a state-of-the-art energy storage solution that combines high capacity, flexible installation, advanced communication capabilities, and an intuitive user interface. It is the perfect choice for homeowners looking to enhance their energy independence, reduce their carbon footprint, and embrace a sustainable lifestyle. With its exceptional performance and reliability, the LVTS-512100-G3 sets a new standard for residential energy storage systems.
